Rullkedjor typ S för elevatorer och lantbruksmaskiner
Standard
Denna rullkedja passa för elevatorer och lantbruksmaskiner. Till kedja typ S finns en mängd olika fästlänkar. Kontakta oss för med information.

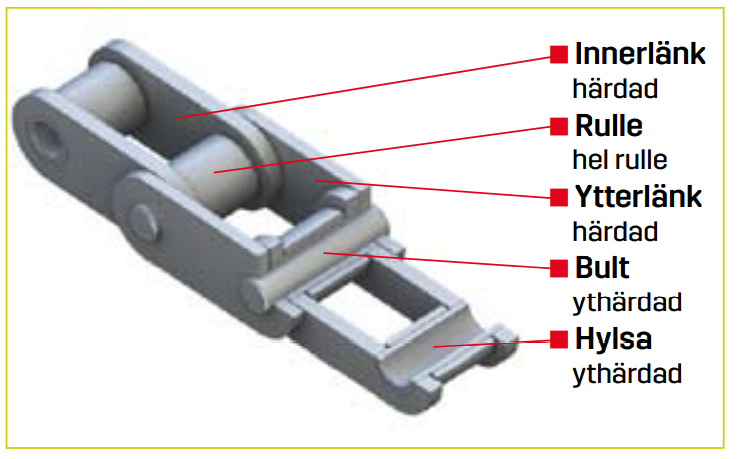

Teknisk specifikation
- Material : stål

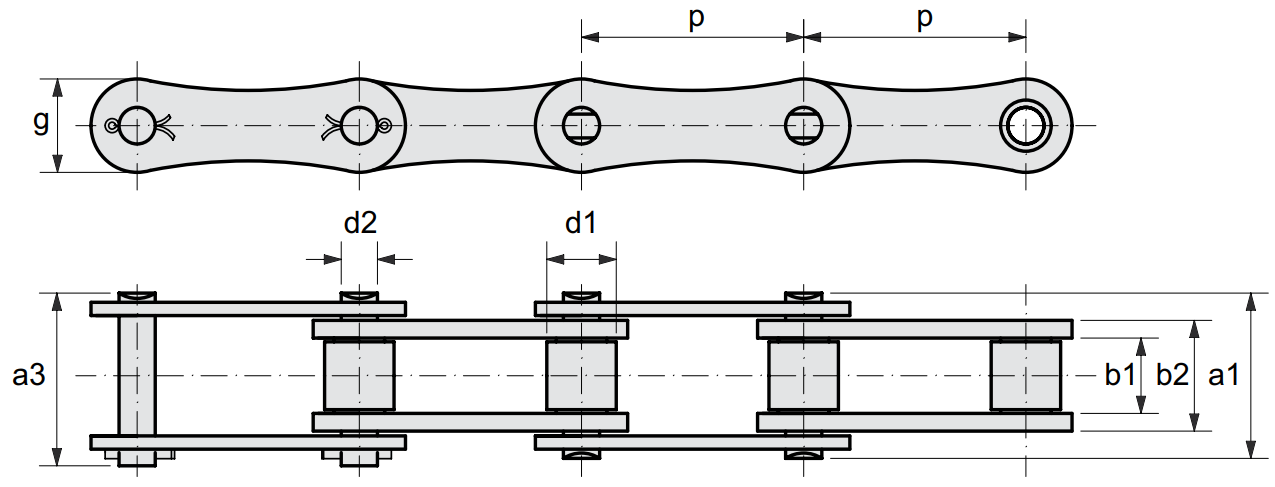

Artikelnummer | Delning P mm | Bult diameter d2 max mm | Lageryta LY cm² | Brottsbelastning N min | Vikt kg/m | Invändig bredd b1 min mm | Rulldiameter d1 max mm | Bredd innerlänk b2 max mm | Totalbredd a1 max mm | Totalbredd a3 max mm | Länkhöjd g max mm |
---|---|---|---|---|---|---|---|---|---|---|---|
S32W | 29,21 | 4,45 | 0,9 | 17500 | 0,76 | 15,88 | 11,43 | 20,19 | 26,7 | 31,8 | 13,5 |
S42W | 34,93 | 7 | 1,8 | 41000 | 1,49 | 19,05 | 14,27 | 25,4 | 34,3 | 39,4 | 19,8 |
S45W | 41,4 | 5,74 | 1,6 | 32000 | 1,46 | 22,23 | 15,24 | 28,58 | 38,1 | 43,2 | 17,3 |
S52W | 38,1 | 5,74 | 1,6 | 32000 | 1,56 | 22,23 | 15,24 | 28,58 | 38,1 | 43,2 | 17,3 |
S55W | 41,4 | 5,74 | 1,6 | 32000 | 1,65 | 22,23 | 17,78 | 28,58 | 38,1 | 43,2 | 17,3 |
S62W | 41,91 | 5,74 | 1,8 | 32000 | 1,95 | 25,4 | 19,05 | 31,8 | 40,6 | 45,7 | 17,3 |
S77 | 58,34 | 8,92 | 2,8 | 44500 | 2,35 | 22,23 | 18,26 | 31,17 | 43,2 | 52,1 | 26,2 |
S88 | 66,27 | 8,92 | 3,3 | 44500 | 2,78 | 28,58 | 22,86 | 37,52 | 50,8 | 58,4 | 26,2 |
S32 | 29,21 | 4,45 | 0,9 | 8000 | 0,76 | 15,88 | 11,43 | 20,19 | 26,7 | 31,8 | 13,5 |
S42 | 34,93 | 7 | 1,8 | 26700 | 1,49 | 19,05 | 14,27 | 25,4 | 34,3 | 39,4 | 19,8 |
S45 | 41,4 | 5,74 | 1,6 | 17800 | 1,46 | 22,23 | 15,24 | 28,58 | 38,1 | 43,2 | 17,3 |
S52 | 38,1 | 5,74 | 1,6 | 17800 | 1,56 | 22,23 | 15,24 | 28,58 | 38,1 | 43,2 | 17,3 |
S55 | 41,4 | 5,74 | 1,6 | 17800 | 1,65 | 22,23 | 17,78 | 28,58 | 38,1 | 43,2 | 17,3 |
S62 | 41,91 | 5,74 | 1,8 | 26700 | 1,95 | 25,4 | 19,05 | 31,8 | 40,6 | 45,7 | 17,3 |
