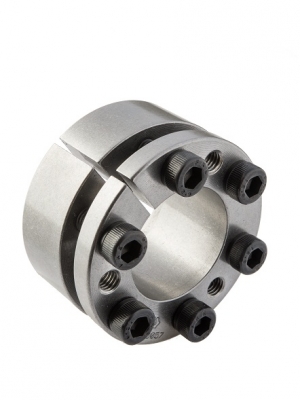

Spännelement typ 1062
Spännelement
Egenskaper:
• Självcentrerande.
• Klarar medel till höga moment.
• Självlåsande.
• Lätt att montera/demontera utan specialverktyg.
• Koncentricitet/vinkelavvikelse max 0.025 - 0.045 mm. Denna serie har utvecklats för att tillgodose kraven på stor radiell noggrannhet vid medelhöga till höga moment.
Användningsområden:
Är speciellt lämpad för höga varvtal där kast och vibrationer kan förorsaka skador. Det höga yttrycket mot både nav och axel gör att man minskar risken för passningsrost. Skillnaden mellan detta element och serie 1061 är att det har innerring som håller samma diameter som ytterringen. vilket ger en viss axiell glidning vid montage. Det är möjligt att dra åt skruvarna på serie 1062 till samma åtdragningsmoment som serie 1061. Då kommer värdena Mt. Fax. Pa och Pm att öka proportionellt förutsatt att hela längden H3 är inbäddad i navet för att undvika att den inre tryckringen (del 2) deformeras.
Applikationer:
Turbindrifter och stora fl äktdrifter m.m.

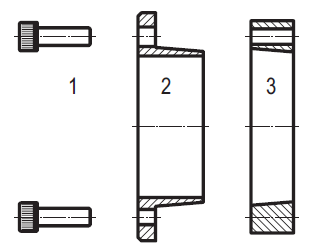

Består av:
1 Sats av insexskruvar. kv. 12.9.
2 Inre tryckring.
3 Yttre tryckring.
Ladda ner CAD-filer från SolidComponents
Letar efter tillgängliga CAD-ritningar
1062-14-32
1062-14-32
1062-15-32
1062-15-32
1062-16-32
1062-16-32
1062-18-47
1062-18-47
1062-19-47
1062-19-47
1062-20-47
1062-20-47
1062-22-47
1062-22-47
1062-24-50
1062-24-50
1062-25-50
1062-25-50
1062-28-55
1062-28-55
1062-30-55
1062-30-55
1062-32-60
1062-32-60
1062-35-60
1062-35-60
1062-38-65
1062-38-65
1062-40-65
1062-40-65
1062-42-75
1062-42-75
1062-45-75
1062-45-75
1062-48-80
1062-48-80
1062-50-80
1062-50-80
1062-55-85
1062-55-85
1062-60-90
1062-60-90
1062-65-95
1062-65-95
1062-70-110
1062-70-110
1062-75-115
1062-75-115
1062-80-120
1062-80-120
1062-85-125
1062-85-125
1062-90-130
1062-90-130
1062-95-135
1062-95-135
1062-100-145
1062-100-145
1062-110-155
1062-110-155
1062-120-165
1062-120-165
1062-130-180
1062-130-180
1062-140-190
1062-140-190
1062-150-200
1062-150-200
1062-160-210
1062-160-210
1062-170-225
1062-170-225
1062-180-235
1062-180-235
1062-190-250
1062-190-250
1062-200-260
1062-200-260
1062-220-285
1062-220-285
1062-240-305
1062-240-305
1062-260-325
1062-260-325
1062-280-355
1062-280-355
1062-300-375
1062-300-375
1062-320-405
1062-320-405
1062-340-425
1062-340-425
1062-360-455
1062-360-455
1062-380-475
1062-380-475
1062-400-495
1062-400-495

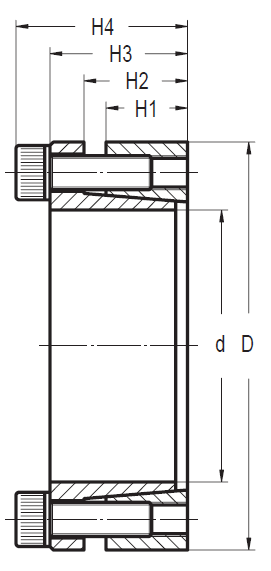

Artikelnummer | H1 mm | H2 mm | H3 mm | H4 mm | Skruvar storlek gänga mm | Skruvar åtdragningsmoment Ma Nm | Överfört moment Nm | Axial kraft Fax kN | Yttryck axel Pa N/mm² | Yttryck hylsa Pa N/mm² |
---|---|---|---|---|---|---|---|---|---|---|
1062-14-32 | 14 | 18 | 22 | 26 | M 4 | 5 | 100 | 15 | 209 | 91 |
1062-15-32 | 14 | 18 | 22 | 26 | M 4 | 5 | 110 | 15 | 195 | 91 |
1062-16-32 | 14 | 18 | 22 | 26 | M 4 | 5 | 120 | 15 | 183 | 91 |
1062-18-47 | 17 | 23 | 29 | 35 | M 6 | 14 | 320 | 36 | 314 | 120 |
1062-19-47 | 17 | 23 | 29 | 35 | M 6 | 14 | 340 | 36 | 297 | 120 |
1062-20-47 | 17 | 23 | 29 | 35 | M 6 | 14 | 360 | 36 | 283 | 120 |
1062-22-47 | 17 | 23 | 29 | 35 | M 6 | 14 | 390 | 36 | 257 | 120 |
1062-24-50 | 17 | 23 | 29 | 35 | M 6 | 14 | 520 | 43 | 283 | 136 |
1062-25-50 | 17 | 23 | 29 | 35 | M 6 | 14 | 540 | 43 | 271 | 136 |
1062-28-55 | 17 | 23 | 29 | 35 | M 6 | 14 | 600 | 43 | 242 | 123 |
1062-30-55 | 17 | 23 | 29 | 35 | M 6 | 14 | 650 | 43 | 226 | 123 |
1062-32-60 | 17 | 23 | 29 | 35 | M 6 | 14 | 920 | 57 | 283 | 151 |
1062-35-60 | 17 | 23 | 29 | 35 | M 6 | 14 | 1000 | 57 | 258 | 151 |
1062-38-65 | 17 | 23 | 29 | 35 | M 6 | 14 | 1100 | 57 | 238 | 139 |
1062-40-65 | 17 | 23 | 29 | 35 | M 6 | 14 | 1150 | 57 | 226 | 139 |
1062-42-75 | 20 | 27 | 35 | 43 | M 8 | 35 | 2040 | 97 | 307 | 172 |
1062-45-75 | 20 | 27 | 35 | 43 | M 8 | 35 | 2190 | 97 | 287 | 172 |
1062-48-80 | 20 | 27 | 35 | 43 | M 8 | 35 | 2330 | 97 | 269 | 161 |
1062-50-80 | 20 | 27 | 35 | 43 | M 8 | 35 | 2430 | 97 | 258 | 161 |
1062-55-85 | 20 | 27 | 35 | 43 | M 8 | 35 | 3050 | 111 | 268 | 174 |
1062-60-90 | 20 | 27 | 35 | 43 | M 8 | 35 | 3330 | 111 | 246 | 164 |
1062-65-95 | 20 | 27 | 35 | 43 | M 8 | 35 | 4060 | 125 | 255 | 175 |
1062-70-110 | 24 | 31 | 41 | 51 | M 10 | 69 | 6230 | 178 | 281 | 179 |
1062-75-115 | 24 | 31 | 41 | 51 | M 10 | 69 | 6670 | 178 | 262 | 171 |
1062-80-120 | 24 | 31 | 41 | 51 | M 10 | 69 | 7120 | 178 | 246 | 164 |
1062-85-125 | 24 | 31 | 41 | 51 | M 10 | 69 | 8510 | 200 | 261 | 177 |
1062-90-130 | 24 | 31 | 41 | 51 | M 10 | 69 | 9010 | 200 | 246 | 170 |
1062-95-135 | 24 | 31 | 41 | 51 | M 10 | 69 | 10500 | 222 | 259 | 182 |
1062-100-145 | 26 | 33 | 45 | 57 | M 12 | 120 | 13220 | 264 | 270 | 186 |
1062-110-155 | 26 | 33 | 45 | 57 | M 12 | 120 | 14550 | 264 | 245 | 174 |
1062-120-165 | 26 | 33 | 45 | 57 | M 12 | 120 | 17850 | 297 | 253 | 184 |
1062-130-180 | 34 | 41 | 55 | 69 | M 14 | 190 | 25970 | 399 | 240 | 173 |
1062-140-190 | 34 | 41 | 55 | 69 | M 14 | 190 | 27970 | 399 | 223 | 164 |
1062-150-200 | 34 | 41 | 55 | 69 | M 14 | 190 | 33300 | 444 | 231 | 173 |
1062-160-210 | 34 | 41 | 55 | 69 | M 14 | 190 | 39070 | 488 | 238 | 181 |
1062-170-225 | 44 | 51 | 65 | 79 | M 14 | 190 | 45290 | 532 | 189 | 143 |
1062-180-235 | 44 | 51 | 65 | 79 | M 14 | 190 | 47950 | 532 | 178 | 137 |
1062-190-250 | 44 | 51 | 65 | 79 | M 14 | 190 | 63270 | 666 | 211 | 161 |
1062-200-260 | 44 | 51 | 65 | 79 | M 14 | 190 | 66600 | 666 | 201 | 154 |
1062-220-285 | 50 | 57 | 73 | 89 | M 16 | 295 | 80970 | 736 | 178 | 137 |
1062-240-305 | 50 | 57 | 73 | 89 | M 16 | 295 | 110420 | 920 | 203 | 160 |
1062-260-325 | 50 | 57 | 73 | 89 | M 16 | 295 | 143550 | 1104 | 225 | 180 |
1062-280-355 | 60 | 67 | 85 | 103 | M 18 | 405 | 166210 | 1187 | 187 | 148 |
1062-300-375 | 60 | 67 | 85 | 103 | M 18 | 405 | 200340 | 1335 | 197 | 157 |
1062-320-405 | 74 | 82 | 102 | 122 | M 20 | 580 | 279320 | 1745 | 196 | 155 |
1062-340-425 | 74 | 82 | 102 | 122 | M 20 | 580 | 346240 | 2036 | 215 | 172 |
1062-360-455 | 86 | 94 | 116 | 138 | M 22 | 780 | 388060 | 2155 | 185 | 146 |
1062-380-475 | 86 | 94 | 116 | 138 | M 22 | 780 | 477890 | 2515 | 204 | 163 |
1062-400-495 | 86 | 94 | 116 | 138 | M 22 | 780 | 503040 | 2515 | 194 | 157 |
